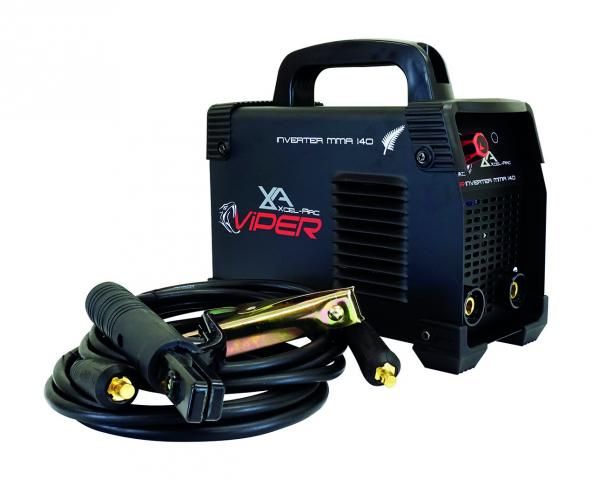

VIPER ARC140 DC WELDER

Stock Code:
XA-VA140
Price:
$333.79 Incl. GST
Add to Favourites
Make an Enquiry

Description

VIPER ARC140 DC INVERTER WELDER

140Amp DC Welding Machine
230V Single Phase 140 Amp DC Welder
Small, Lightweight and Portable
Welds: Steels, Stainless, Cast Iron, Bronze, Copper

Product Overview
The VIPER ARC140 from Xcel-Arc is a new generation, low cost welding machine produced using modern IGBT inverter technology.
Designed to meet the needs of the price conscious non-commercial user without compromising on quality, this machine is as reliable and robust as you would expect a machine bearing the Xcel-Arc name to be. The DC MMA welding function delivers a smooth and incredibly stable arc, allowing easy welding with electrodes producing high quality welds including cast Iron, stainless steel and low hydrogen.
Connection of the optional XA17V Tig Torch allows basic scratch-start DC-TIG welding of steel, stainless steel, bronze and copper. The unique electronic design structure and air channel design in this machine speeds up the heat disapation improving the duty cycle of the machine and reducing dust ingestion by the fan, thereby improving the reliability of the machine. The VIPER ARC140 is an exceptional machine for the price and is suitable for a wide range of applications including light fabrication, farming and whatever else a Kiwi bloke might be working on in his shed. The VIPER ARC140 offers great portability with the power to get the job done and with the convenience of being fitted with a 10 amp domestic plug. Designed and built to our specification and manufactured in compliance to AS/NZ60974-1.

Features
• Modern IGBT inverter technology
• MMA (stick electrode)
- Hot start (improves electrode starting)
- Arc force (prevents electrode extinguishing)
- Excellent arc stability with all electrodes
• DC TIG
- Basic DC-TIG with scratch start
• Thermal overload protection
• IP21S rating for environment/safety protection
• Tolerant to variable power supply
• Fitted with domestic 10 amp plug
• Generator compatible (recommend 6.5 kVA)

Technical Data
Power Supply - 240V 1-Phase ±15%
Rated Input Power - 6.5 kVA
I ieff as per AS/NZ60974-1 - 10.0 Amps
Rated Output - 140 Amps / 25.6V
Welding Current Range - 20 ~ 140 Amps
No-Load Voltage (OCV) - 68V
Duty Cycle @ 40ºC as per AS/NZ60974-1 - 15% @ 140 Amps
Efficiency (%) - 85%
Power Factor - 0.65
Protection Class - IP21S
Insulation Class - F
Size (LxWxH) - 295 x 135 x 270mm
Weight - 3.8 Kg
Warranty 12 months machine only
Certification Approval - AS/NZ60974-1
