RAZORWELD MIG350WRZ MULTIFUNCTION INVERTER WELDER

Stock Code:
XA-MIG350WRZ-K
Regular Price:
$3,485.36 Incl. GST
Price:
$3,296.00 Incl. GST
Add to Favourites
Make an Enquiry

Description

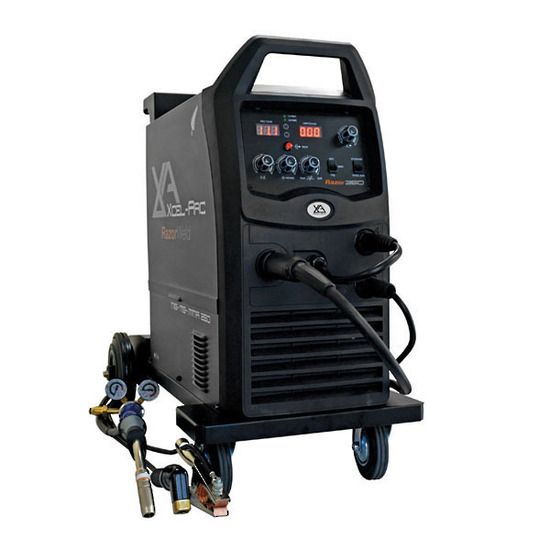

RAZORWELD MIG350WRZ MULTIFUNCTION INVERTER WELDER

RAZORWELD MIG350WRZ DC Inverter
350 Amp MIG/TIG/MMA
Welds: Steels, Stainless, Cast Iron, Bronze, Aluminium, Copper

Product Overview
The MIG350WRZ is a high-quality inverter MIG welding machine with MMA (stick electrode) and DC-TIG functions. Produced using the very latest IGBT inverter technology, this machine is extremely reliable, robust and stacked with all the features that you would expect from an industrial welding machine. The MIG function allows you to weld with both Gas Shielded and Gasless wires and the MIG350WRZ is also Spoolgun-Ready and allows simple connection of the XASP360 Spoolgun for use with soft or very thin wires that often don’t have the column strength to successfully feed through standard Mig Torches, such as aluminium wire. Digital Meters and step-less adjustment of voltage, wire feed & inductance make for easy setting of welding parameters giving excellent, professional welding results. The MMA welding capability delivers easy welding with electrodes producing high quality welds including cast Iron, stainless steel and low hydrogen. Connection of the XA17V Tig Torch provides quality Lift-Arc DC-TIG welding of steel, stainless steel and copper. With heavy-duty wheels, castors & integral cylinder rack, the MIG350WRZ is an ideal workshop machine for industrial fabrication, transport engineering, farm workshop and general maintenance work. The three-phase MIG350WRZ gives you the flexibility of multiple welding processes with plenty of power to get even the biggest jobs done.
Built to our specification and manufactured in compliance to AS/NZ60974-1

Features
• Proven IGBT inverter technology
• MIG/MAG with Gas and Gasless capabilty
- Soft Start
- Adjustable Burn Back
- Wire Inch
- Internal 4 roll geared wire feeder
- Stepless voltage and wire feed control
- Excellent welding with CO2 gas
- Euro style Mig Torch connection
- Spool Gun connection
- Push-Pull Gun Ready
• MMA function (Stick electrode)
- VRD (Voltage Reduction Device)
- Hot start (improves electrode starting)
- Arc Force (prevents electrode extinguishing)
• DC TIG
- Lift Arc (prevents tungsten sticking at arc ignition)
- Ultra smooth DC TIG welding current
• Digital Amp - Volt Meters
• Semi industrial application
• Tolerant to variable power supply

Technical Data
Power Supply - 415V 3-Phase ±15%
Rated Input Power MIG - 13.9 kVA
Rated Input Power MMA - 15.0 kVA
I ieff as per AS/NZ60974-1 MIG - 12.3 Amps
I ieff as per AS/NZ60974-1 MMA - 13.2 Amps
Output Current Range MIG - 50A/15.0V - 350A/38.0V
Output Current Range MMA - 20A/20.8V - 350A/34.0V
Duty Cycle @ 40ºC as per AS/NZ60974-1 - 40% @ 350 Amps MIG , 40% @ 350 Amps MMA
Protection Class - IP21S
Insulation Class - F
Size (LxWxH) - 900 x 400 x 785mm
Weight - 60.0 Kg
Warranty 36 months machine only
Certification Approval - AS/NZ60974-1
