RAZOR CUT80 INVERTER PLASMA CUTTER

Stock Code:
XA-CUT80RZ-K
Price:
$2,835.65 Incl. GST
Unavailable for Online Purchase
Notify When in Stock
Add to Favourites
Make an Enquiry

Description

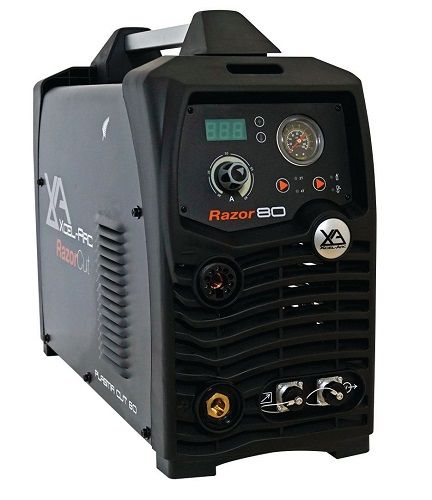

RAZOR CUT80 INVERTER PLASMA CUTTER

80Amp 415V Inverter Plasma Cutter
Industrial Rated with MCU Technology
Cuts: Steels, Stainless, Cast Iron, Brass, Aluminum, Copper

Product Overview
The RAZOR CUT80 is a high quality industrial-rated three phase inverter Plasma Cutting machine produced using the latest in IGBT inverter technology and incorporating advanced MCU intelligent software technology. The machine automatically monitors and controls all critical functions and compensates for possible inconsistencies caused by wear in torch components, environmental temperature or humidity. The resulting cutting performance is greatly improved compared to traditional plasma cutting machines. The RAZOR CUT80 is reliable, robust and stacked with features that you can expect from a high quality plasma cutter including full CNC connection. The RAZOR CUT80 is equipped with a high quality Suregrip SC80 Plasma Torch with Euro Style connection and 6mtr cable. The SC80 Plasma Torch provides effortless starting of the cut with powerful, fast and accurate stand-off cutting with drag cutting capability. The SC80 Plasma Torch uses low-cost wear consumables with the additional benefit of longer life cycle of both Electrodes and Cutting Tips. The RAZOR CUT80 is an exceptional machine that is well suited to a wide range of applications including industrial and general engineering, forestry and agriculture, site work, heavy transport and marine repair, general demolition and maintenance work. The RAZOR CUT80 provides great portability, with stacks of cutting power to get the job done with outstanding speed and a great finish. Built to our specification and manufactured in compliance to AS/NZ60974.1

Features
- Latest IGBT Inverter Technology
- Heavy Industrial application
- CNC-Ready
- Outstanding performance from three-phase
- HF Arc Ignition (non-contact)
- Stand-off cutting with drag cut capability
- Maximum sever cutting thickness (steel) 35mm
- High quality Surecut SC80 Plasma Torch 6mtr
- Euro Style torch connection
- Auto protection for over voltage & over current
- Auto protection for low air & thermal overload
- Integral pre-set air regulator, self-drain type
- Lightweight & compact design
- Tolerant to variable power supply

Technical Data
Power Supply - 415V 3-Phase ±15%
Rated Input Power - 11.3 kVA
Output Current Range - 20~80Amps
Duty Cycle @ 40ºC as per AS/NZ60974-1 - 40% @ 80Amps
Rated Output Voltage - 112
Protection Class - IP23
Insulation Class - F
Size (LxWxH) - 560 x 220 x 415mm
Weight - 16 Kg
Warranty - 36 months machine only
Certification Approval - AS/NZ60974-1
